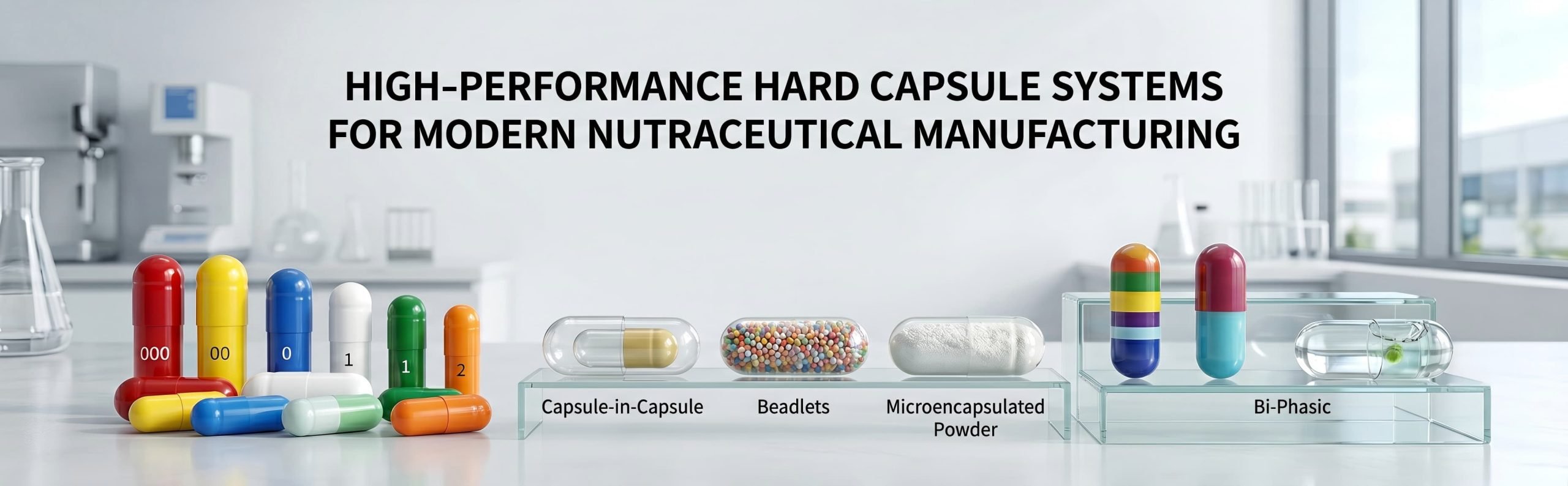

Advanced Hard Capsule Technologies: Delayed-Release, Liquid-Fill & Capsule-in-Capsule

Standard Hard Capsule vs Specialty Path

A conventional gelatin or HPMC powder fill is still the right first path for most vitamin, mineral, and dry botanical SKUs. Immediate-release shell choice is HPMC vs gelatin capsules. Volume that will not fit one shell is high-dose capsule formulation. Botanical moisture and cross-linking risk types are capsule filling problems in botanical supplements.

Move to a specialty path when the constraint is leak, two-phase incompatibility, a written delayed-opening test, or a market-legal opacifier — not because “advanced” sounds premium.

Delayed-Release Hard Capsules: Three Manufacturing Routes

Standard HPMC is immediate-release. Delayed opening is a route, not a polymer nickname. [4]

What can go wrong: calling any vegetarian shell “enteric”; copying a brochure curve instead of the method in the specification; coating a leaking or overweight core.

What to validate: fill weight and lock first; then opening or acid-stage behaviour against the protocol you will release to. Where USP ⟨2040⟩ or a monograph applies, use that chapter — not a marketing dissolution story. [3]

Coating vs specialty shell: choose coating when the finished-unit test is already written; choose a delayed-release empty shell when the supplier grade’s method matches the brief and the fill is a simple dry powder.

How Liquid-Filled Hard Capsules Are Manufactured

Liquid-filled hard capsules are a two-piece fill + seal path. They are not an unbanded powder machine with oil poured in.

Typical sequence

1. Liquid preparation — oil, solution, suspension, or paste; remove air and undispersed solids that will block a nozzle.
2. Compatibility screen — will the fill soften, stain, or embrittle the named gelatin or HPMC grade?
3. Dosing — volumetric or gravimetric liquid pump into the body (not a powder tamping disk). Viscosity must be in the range the pump and nozzle can repeat; there is no universal “capsule oil viscosity.”
4. Cap placement and lock
5. Sealing / banding — gelatin or polymer band (or another qualified seal) over the join after lock, so the seam is the leak barrier.
6. Conditioning — dry or set the band per that seal system.
7. Leak and weight checks — inverted hold, vacuum or pressure methods as specified for the project, plus fill-weight variation.
8. Pack — still required; a band is not a blister.

What can go wrong: weep at the lock, band skip, fill migration into the wall, weight scatter on viscous suspensions, shell tack after storage.

What the OEM evaluates: fill type (neat oil vs suspension), target weight, shell grade, seal method, leak protocol, and whether a softgel line is the simpler commercial unit dose.

Choose liquid-filled hard capsules when

The brand needs a two-piece hard-capsule look or a vegetarian hard shell; the fill can be sealed; leak and weight hold on a trial.

Choose a softgel when

The primary job is a high-volume lipid unit dose. One-piece hermetic ribbon is the usual oil platform. Equipment, appearance, and swallow format are a different SKU file.

HPMC can be liquid-filled when the named grade and seal system are compatible — not because the word HPMC appears on the brief.

Standard powder encapsulators do not automatically become liquid-fill lines. Liquid dosing and banding are additional process stations.

How Capsule-in-Capsule Is Manufactured

Do not put two powders in one cavity when they will exchange moisture, oxidize each other, fight on pH, or need two release timings. Capsule-in-capsule is justified when physical separation itself is the formulation benefit — oil + dry, hygroscopic + dry-sensitive, two independently dosed actives, or two opening designs.

Typical sequence

1. Fill and lock the inner capsule; inspect weight and closure.
2. Separate the outer body and cap on the insertion setup.
3. Place the inner capsule (orientation as specified).
4. Add any outer-cavity powder or leave air as designed.
5. Lock the outer capsule.
6. Check count (one inner), combined weight, dual lock, appearance.
7. Polish and pack.

What can go wrong: missing inner, crushed inner, outer fail-to-lock, weight scatter from two dosing steps, insertion jams at speed.

What to lock: inner and outer named grades and sizes; each fill; insertion tooling; inspection plan.

One blended fill

Lowest complexity. Use when the powders can share a hopper.

Capsule-in-capsule

One serving, physical separation. Higher tooling, two locks, slower scale-up.

Two capsules per serving

Flexible formulas, no insertion station. Higher count and pack cost.

Two SKUs

Maximum flexibility. Inventory and two artworks.

Multi-Particulate Fills (Pellets, Beadlets, Mini-Tablets)

The shell is a carrier. Release, if any, is usually on the particle. Dosing is not the same as a homogeneous powder: PSD, coat identity, and segregation decide weight and content. Mixed densities still un-mix in a vibrating hopper. Weight vs content is capsule weight variation and quality control. How a standard powder lot is filled is hard capsule manufacturing process.

Specialty Immediate-Release Shells

TiO₂-free opaque grades

EU law removed authorisation of E 171 as a food additive. [1][2] Whether the empty-shell opacifier must be TiO₂-free is counsel + market. Qualify appearance, opacity, fill show-through, brittleness, and the colorant list on the CoA. HPMC is not automatically TiO₂-free.

Oxygen-barrier grades

A named HPMC or pullulan product, plus pack. Not “vegetarian = barrier.”

Low-moisture HPMC / pullulan

Specify the grade. Pullulan is a separate polymer file when the brief names it — not a default.

Secure-lock designs

Supplier lock geometry for leak-prone powders. Does not fix bridging. Confirm on the filler you will run.

Process Stations (No Machine Brands)

A specialty SKU is often not the same production path as a vitamin powder in size 0.

Manufacturing Challenges and Scale-Up

Shell–fill compatibility. Oils, residual solvents, acids/alkalis, and hygroscopic powders can soften, embrittle, stain, or change opening. Screen the named grade before locking artwork.

Fill-weight control. Liquids, pellets, and dual fills do not share one “mg in size 00” number. Density, flow, segregation, and the dosing principle all move the weight.

Lock and seam. Liquid-fill lives or dies on band continuity and transport vibration. Capsule-in-capsule lives on two locks.

Moisture chain. Raw LoD → empty-shell moisture → filling-room humidity → pack → stability. Breaking one link undoes a barrier shell.

Scale-up. A hand-filled or lab unit is not commercial. Re-check speed, weight scatter, reject rate, shell damage, insertion or band yield, and leak after dwell. Change of empty-shell lot or pump setting is change control.

MOQ and calendar follow empty-shell grade availability and the stations the SKU actually uses. There is no universal specialty-capsule MOQ or “X-week” development clock on this page.

The fill trial is the gate. A specialty name is not a stability file.

Specialty Capsule Qualification Checklist

Empty shell: polymer, supplier, grade, size, moisture spec, colorant/opacifier, barrier or delayed-release claims, mechanical/storage statement.
Fill: identity and potency spec, extract ratio if botanical, excipients, bulk/tapped density or liquid viscosity as measured, moisture, flow or pump notes.
Process: dosing method, seal or insertion, lock, coating if any, in-process weight.
Finished: appearance, fill weight, leak (if liquid), opening test where specified, microbial if the file requires it, pack compatibility, stability protocol for the market.

What We Need for an Advanced Capsule RFQ

Problem

Moisture, oxygen, acid-stage opening, leak, two-phase split, TiO₂, vegan — name one primary constraint.

Formula

Oil vs dry vs both; probiotics/enzymes if present; target dose and serving.

Release target

Immediate vs delayed vs coated — as a testable method, not a health claim.

Capsule and pack

Named grade or “recommend”; market (US, EU, UK, Middle East, other); packaging intent.

If size is open, recommend a candidate after platform, fill weight, and powder or viscosity data. Size math: how to choose capsule size.

Have a delayed-release, liquid-fill, capsule-in-capsule, or TiO₂-free brief?
Send the problem, formula, market, and release method. KS Nutripharma can say whether a standard powder fill is enough, which route to trial (shell vs coat vs liquid-seal vs insertion), and what the pilot must record — then quote filling from that review.

Request a technical review
